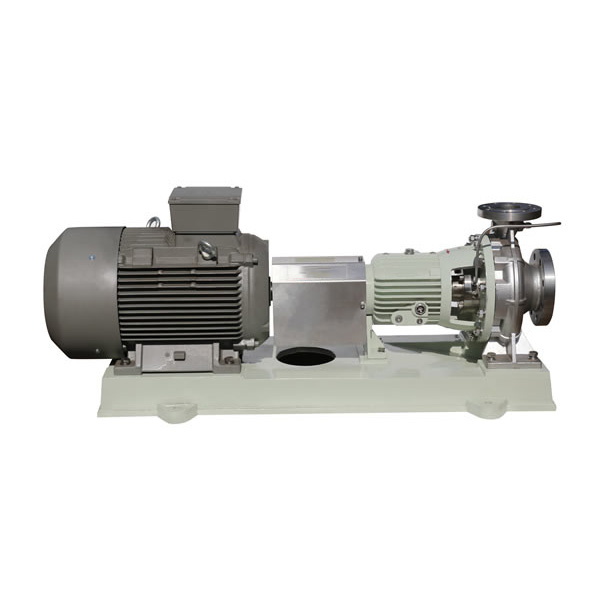

- 商品名稱：OLV型化工離心泵
- 添加時間：2020-12-01 17:13:56
- 電 話：15955043377
郵 箱：807615200@qq.com
產品概述 Product overview
OLV型端吸單級離心泵嚴格按照******標準ISO5199和ISO2058進行優化設計的高性能產品，該泵機的葉輪為單吸徑向葉輪，可按輸送料液的特性，采用閉式葉輪和開式葉輪結構，軸封根據料液的屬性，采用單端面和雙端面集裝式機械密封，并設有機封和腔體的循環沖洗系統，泵機的油室和料液腔體設有高低溫冷熱交換系統，該產品廣泛適用于石油、化工、煉油、醫藥、酒精、雙氧水、銅箔、環保、印染、鋰電新能源等行業。
The OLV end suction single-stage centrifugal pump is a high-performance product optimized and designed in strict accordance with the international standards ISO5199 and ISO2058. The impeller of the pump is a single suction radial impeller, which can adopt the structure of closed impeller and open impeller according to the characteristics of the feed liquid. The shaft seal adopts single end and double end container mechanical seals according to the properties of the feed liquid, and is equipped with a circulating flushing system for the organic seal and cavity, The oil chamber and feed liquid chamber of the pump are equipped with high and low temperature cold and heat exchange systems, which are widely used in petroleum, chemical industry, oil refining, medicine, alcohol, hydrogen peroxide, copper foil, environmental protection, printing and dyeing, lithium new energy and other industries.
性能參數Performance Parameters
型號 type | 轉速rotate speed(2900r/min) | 轉速rotate speed(1450r/min) | ||||||||
流量 rate of flow (m3/h) | 揚程 head (m) | 功率motor power(KW) | 流量 rate of flow(m3/h) | 揚程 head (m) | 功率motor power(KW) | |||||
| r=1.00 | r=1.35 | r=1.85 | r=1.00 | r=1.35 | r=1.85 | |||||
| OLV32-160 | 15 | 35 | 4 | 5.5 | 7.5 | 7.5 | 9 | 1.1 | 1.1 | 1.5 |
| OLV32-200 | 15 | 55 | 7.5 | 11 | 15 | 7.5 | 13.5 | 1.5 | 1.5 | 2.2 |
| OLV32-250 | 15 | 85 | 15 | 18.5 | 30 | 7.5 | 21 | 2.2 | 3 | 4 |
| OLV40-160 | 30 | 35 | 7.5 | 11 | 15 | 15 | 9 | 1.1 | 1.1 | 1.5 |
| OLV40-200 | 30 | 55 | 11 | 15 | 18.5 | 15 | 13.5 | 1.5 | 1.5 | 2.2 |
| OLV40-250 | 30 | 85 | 18.5 | 22 | 30 | 15 | 21 | 3 | 3 | 4 |
| OLV40-315 | 30 | 130 | 37 | 45 | 55 | 15 | 32 | 5.5 | 7.5 | 7.5 |
| OLV50-160 | 50 | 35 | 11 | 11 | 15 | 25 | 9 | 1.5 | 2.2 | 3 |
| OLV50-200 | 55 | 55 | 15 | 18.5 | 30 | 27.5 | 1.53 | 2.2 | 3 | 4 |
| OLV50-250 | 60 | 85 | 30 | 37 | 55 | 30 | 20 | 4 | 5.5 | 7.5 |
| OLV50-315 | 65 | 130 | 55 | 75 | 90 | 32.5 | 32 | 7.5 | 11 | 15 |
| OLV65-160 | 100 | 32 | 15 | 18.5 | 30 | 50 | 8 | 2.2 | 3 | 4 |
| OLV65-200 | 100 | 55 | 22 | 30 | 45 | 50 | 13.5 | 3 | 4 | 7.5 |
| OLV65-250 | 110 | 85 | 45 | 55 | 75 | 55 | 21 | 7.5 | 7.5 | 11 |
| OLV65-315 | 110 | 130 | 75 | 90 | 132 | 55 | 32 | 11 | 15 | 18.5 |
| OLV100-200 | 200 | 55 | 45 | 55 | 75 | 100 | 12.5 | 5.5 | 7.5 | 11 |
| OLV100-250 | 220 | 85 | 75 | 90 | 132 | 110 | 20 | 11 | 15 | 18.5 |
| OLV100-315 | 240 | 130 | 132 | 160 | 220 | 120 | 32 | 18.5 | 22 | 30 |
型號 type | 轉速rotate speed(1450r/min) | 轉速rotate speed(960r/min) | ||||||||
流量 rate of flow (m3/h) | 揚程 head (m) | 功率motor power(KW) | 流量 rate of flow (m3/h) | 揚程 head (m) | 功率motor power(KW) | |||||
| r=1.00 | r=1.35 | r=1.85 | r=1.00 | r=1.35 | r=1.85 | |||||
| OLV100-400 | 150 | 50 | 45 | 55 | 75 | 100 | 22 | 15 | 18.5 | 22 |
| OLV125-250 | 200 | 20 | 18.5 | 22 | 30 | 135 | 9 | 5.5 | 7.5 | 11 |
| OLV125-315 | 200 | 32 | 30 | 37 | 45 | 135 | 14 | 11 | 11 | 15 |
| OLV125-400 | 220 | 50 | 55 | 75 | 90 | 150 | 22 | 18.5 | 22 | 30 |
| OLV150-250 | 360 | 18 | 30 | 45 | 55 | 245 | 8 | 11 | 15 | 18.5 |
| OLV150-315 | 380 | 30 | 45 | 75 | 90 | 260 | 13 | 15 | 22 | 30 |
| OLV150-400 | 400 | 48 | 90 | 110 | 160 | 270 | 21 | 30 | 37 | 45 |
| OLV150-500 | 450 | 95 | 185 | 250 | 355 | 300 | 43 | 55 | 75 | 110 |
| OLV200-250 | 600 | 15 | 37 | 55 | 75 | 400 | 7 | 11 | 18.5 | 22 |
| OLV200-315 | 650 | 32 | 90 | 132 | 185 | 440 | 14 | 30 | 37 | 55 |
| OLV200-400 | 650 | 50 | 132 | 185 | 250 | 440 | 22 | 37 | 55 | 75 |
| OLV200-500 | 700 | 59 | 250 | 315 | 400 | 475 | 43 | 75 | 90 | 132 |
| OLV250-315 | 1000 | 23 | 110 | 160 | 220 | 675 | 10 | 37 | 45 | 75 |
| OLV250-400 | 1000 | 44 | 160 | 200 | 315 | 675 | 19 | 45 | 55 | 90 |
| OLV250-500 | 1000 | 80 | 355 | 450 | 630 | 740 | 36 | 110 | 132 | 185 |
| OLV300-400 | 1500 | 40 | 250 | 315 | 450 | 1000 | 18 | 75 | 90 | 132 |
| OLV300-500 | 1700 | 70 | 450 | 630 | 800 | 1150 | 32 | 132 | 185 | 250 |
