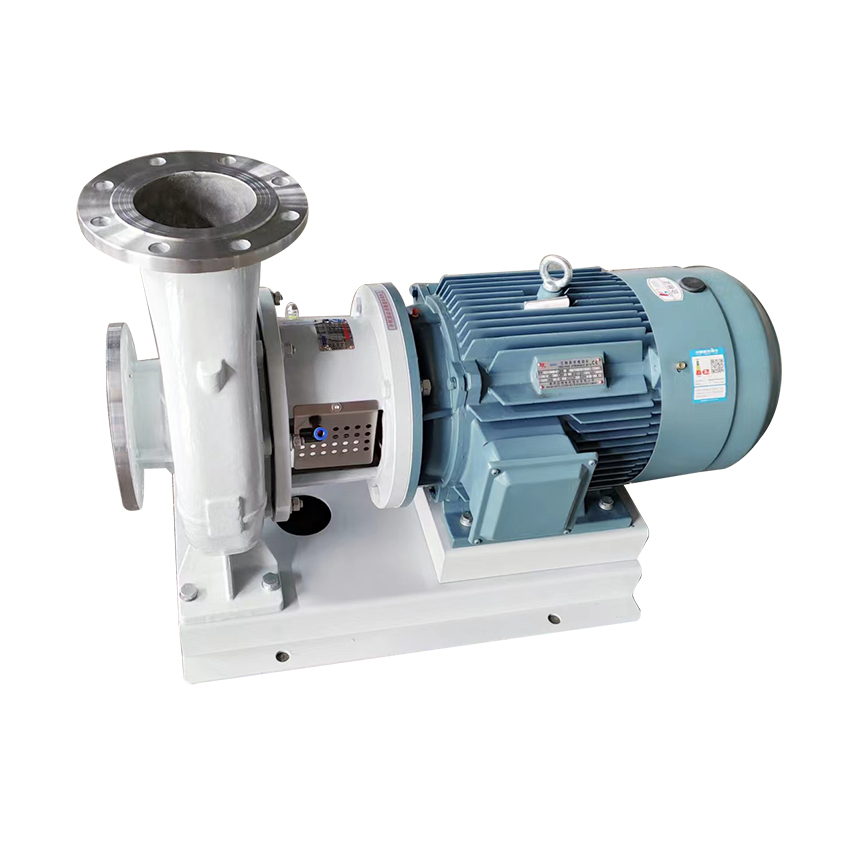

- 商品名稱：IHZ型直聯式離心泵
- 添加時間：2022-02-28 09:54:49
產品概述 Product overview
IHZ型直聯離心泵為臥式，端吸，單級，直聯式離心泵，采用******標準ISO-2858。該泵設計體積小，占地面積短，結構緊湊，性能穩定，適合輸送低溫，常溫，中性或有腐蝕性，清潔或含有少量固體顆粒液體，本產品廣泛適用于化工，石油，淀粉，冶金，環保，食品，制藥，制糖，釀酒等行業。
IHZ type direct connected centrifugal pump is horizontal, end suction, single stage, direct connected centrifugal pump, using the international standard ISO-2858. The pump design small volume, covers an area of short, compact structure, stable performance, suitable for conveying low temperature, normal temperature, neutral or corrosive, clean or contain a small amount of solid particle liquid, this product is widely used in chemical industry, petroleum, starch, metallurgy, environmental protection, food, pharmaceutical, sugar, wine and other industries.
性能參數表Performance Parameters
型號 type | 轉速rotate speed (2900r/min) | 轉速rotate speed (1450r/min) | ||||||||
流量 rate of flow (m3/h) | 揚程 head (m) | 功率motor power(KW) | 流量 rate of flow (m3/h) | 揚程 head (m) | 功率motor power（KW) | |||||
r=1.00 | r=1.35 | r=1.85 | r=1.0 | r=1.35 | r=1.85 | |||||
| IHZ50-125 | 12.5 | 20 | 2.2 | 3 | 4 | 6.3 | 5 | 0.55 | 0.55 | 0.55 |
| IHZ50-160 | 12.5 | 32 | 3 | 4 | 5.5 | 6.3 | 8 | 0.55 | 0.75 | 1.1 |
| IHZ50-200 | 12.5 | 50 | 5.5 | 7.5 | 11 | 6.3 | 12.5 | 1.1 | 1.1 | 1.5 |
| IHZ50-250 | 12.5 | 80 | 11 | 15 | 18.5 | 6.3 | 20 | 2.2 | 2.2 | 3 |
| IHZ65-125 | 25 | 20 | 3 | 4 | 5.5 | 12.5 | 5 | 0.55 | 0.55 | 0.75 |
| IHZ65-160 | 25 | 32 | 5.5 | 7.5 | 11 | 12.5 | 8 | 0.75 | 1.1 | 1.5 |
| IHZ65-200 | 25 | 50 | 11 | 11 | 15 | 12.5 | 12.5 | 1.5 | 2.2 | 2.2 |
| IHZ65-250 | 25 | 80 | 15 | 22 | 30 | 12.5 | 20 | 3 | 3 | 4 |
| IHZ65-315 | 25 | 125 | 30 | 37 | 55 | 12.5 | 32 | 5.5 | 5.5 | 7.5 |
| IHZ80-125 | 50 | 20 | 5.5 | 7.5 | 11 | 25 | 5 | 0.75 | 1.1 | 1.5 |
| IHZ80-160 | 50 | 32 | 11 | 11 | 15 | 25 | 8 | 1.5 | 1.5 | 2.2 |
| IHZ80-200 | 50 | 50 | 15 | 18.5 | 30 | 25 | 12.5 | 2.2 | 3 | 4 |
| IHZ80-250 | 50 | 80 | 22 | 30 | 45 | 25 | 20 | 4 | 5.5 | 7.5 |
| IHZ80-315 | 50 | 125 | 37 | 55 | 75 | 25 | 32 | 7.5 | 7.5 | 11 |
| IHZ100-125 | 100 | 20 | 11 | 15 | 18.5 | 50 | 5 | 1.5 | 2.2 | 3 |
| IHZ100-160 | 100 | 32 | 15 | 22 | 30 | 50 | 8 | 2.2 | 3 | 4 |
| IHZ100-200 | 100 | 50 | 22 | 30 | 45 | 50 | 12.5 | 3 | 4 | 5.5 |
| IHZ100-250 | 100 | 80 | 37 | 55 | 75 | 50 | 20 | 5.5 | 7.5 | 11 |
| IHZ100-315 | 100 | 125 | 75 | 90 | 132 | 50 | 32 | 11 | 15 | 18.5 |
| IHZ125-200 | 200 | 20 | 45 | 55 | 90 | 100 | 12.5 | 7.5 | 11 | 15 |
| IHZ125-250 | 200 | 50 | 75 | 110 | 132 | 100 | 20 | 11 | 15 | 18.5 |
| IHZ125-315 | 200 | 80 | 132 | 160 | 220 | 100 | 32 | 18.5 | 22 | 30 |
| IHZ125-400 | / | / | / | / | / | 100 | 50 | 30 | 45 | 55 |
| IHZ125-500 | / | / | / | / | / | 100 | 80 | 55 | 75 | 110 |
| IHZ150-250 | / | / | / | / | / | 200 | 20 | 18.5 | 30 | 37 |
| IHZ150-315 | / | / | / | / | / | 200 | 32 | 30 | 37 | 55 |
| IHZ150-400 | / | / | / | / | / | 200 | 50 | 55 | 75 | 90 |
| IHZ150-500 | / | / | / | / | / | 200 | 70 | 75 | 90 | 132 |
| IHZ200-250 | / | / | / | / | / | 400 | 20 | 37 | 55 | 75 |
| IHZ200-315 | / | / | / | / | / | 400 | 32 | 55 | 75 | 110 |
| IHZ200-400 | / | / | / | / | / | 400 | 50 | 90 | 132 | 160 |
